FLOW LINE

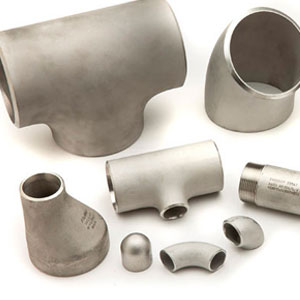

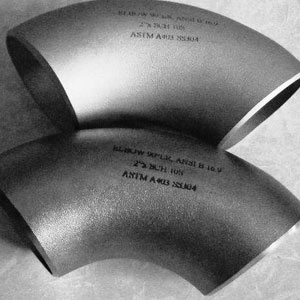

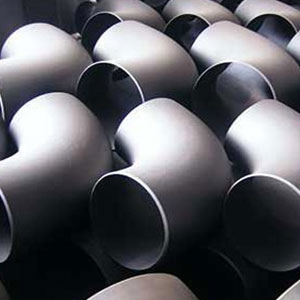

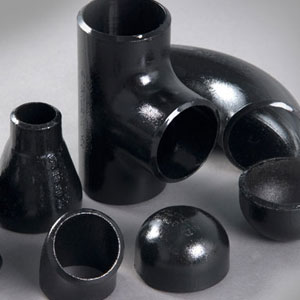

Buttweld Fittings

Types: Pipe Elbow, Pipe Tee, Pipe Cross, Pipe Reducer, Pipe End Cap, Stubend - Lap Joint
Standards: ANSI – B 16.9ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’API 590-605ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”ASME B16.25 – ‘Buttwelding Ends’ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule: Sch 5 TO Sch XXS.
Sizes: 1/2” TO 36”(SEAMLESS UPTO 24”)(WELDED 8” TO 36” )
Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

Stainless Steel	ASTM / ASME SA 403 GR WP “S” / “W” / ” WX” 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H, 904L, A182/F316L modified (Urea service)
Carbon Steel	ASTM / ASME A 234 WPB, WPC
High Yield Carbon Steel	ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temp Carbon Steel	ASTM / ASME A / SA 420 WPL6
Duplex and Super Duplex Steel	ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760
Alloy Steel	ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91.
Nickel Alloy	ASTM / ASME SB 336 UNS N02200 (NICKEL 200), UNS N02201 (NICKEL 201), UNS N04400 (MONEL 400), UNS N08020 (ALLOY 20), UNS N08825 INCOLOY (825), UNS N06600 (INCONEL 600), UNS N06601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N010276 ( HASTELLOY C 276 )
Titanium	ASTM / ASME B/SB 363 Grade 2, Grade 5, Grade 7

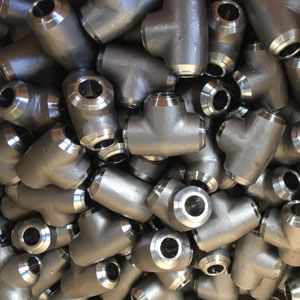

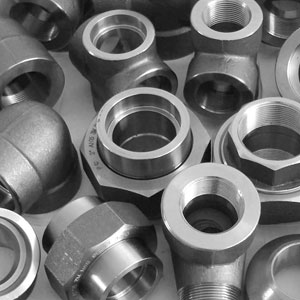

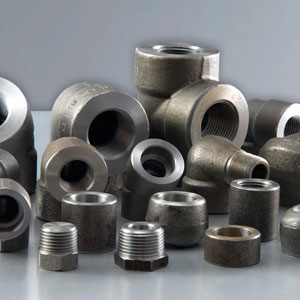

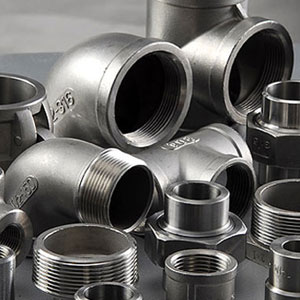

Types: Forged Elbow, Forged Tee, Forged Cross Tee, Forged Coupling, Forged Plug, Forged Bushing, Forged Boss, Forged Nipple, Forged Union.
Size : 1/2"NB TO 4"NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS
Form : 45 Deg, 90 Deg, Forged, Threaded, Socket Weld.

Stainless Steel	ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L, A182/F316L modified (Urea service)
Carbon Steel	ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70
Duplex Stainless Steel	ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
Low Temp Carbon Steel	A350 LF3/A350 LF2
Alloy Steel	ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91
Nickel Alloy	ASTM / ASME SB 564 / 160 / 472. UNS 10276 (HASTELLOY C 276), UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20)UNS 8825 INCONEL 825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625)
Copper Alloy	ASTM / ASME SB 61 / 62 / 151 / 152. C 70600 (CU -NI- 90/10) – Cupro Nickel, C 71500 (CU -NI- 70/30) – Copper Nickel, UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200
