PFA / PTFE Products

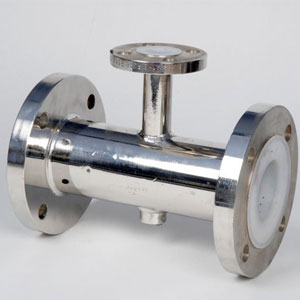

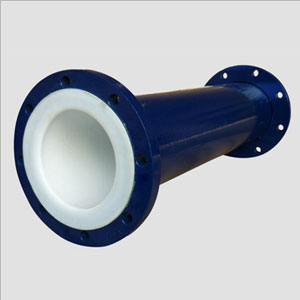

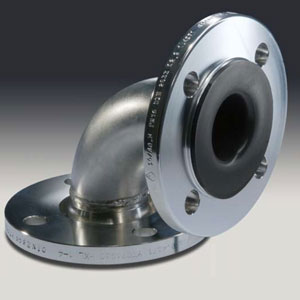

PFA / PTFE Lined Pipes & Fittings

  • Material : PTFE, M-PTFE, PFA, 451HP, 951 HP Plus
  • Standard Size 2” ~20”
  • Standard Length: 6m
  • Others Are Upon Request
  • PFA Liner Thickness : 2mmt~5mmt
  • Ptfe Liner Thickness : 3mmt~12mmt
  • According ASTM 1545-97 Standard
flow line PFA / PTFE Lined Pipes & Fittings
flow line PFA / PTFE Lined Pipes & Fittings

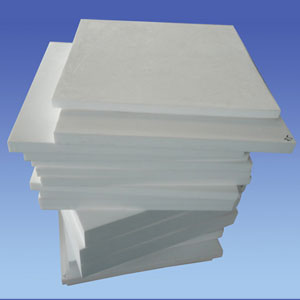

PFA / PTFE Thick Sheet

  • Material: PFA 451HP, 951HP Plus, PTFE, M-PTFE, 951HP Plus FEP, PVDF, ETFE
  • PFA Thickness : 5 ~ 50mm
  • PTFE Thickness : 1.5mmt ~ 5mmt Width: 1.2m, 1.5m, 2m
  • Others are upon request
flow line PFA / PTFE Lined Pipes & Fittings
flow line PFA / PTFE Lined Pipes & Fittings

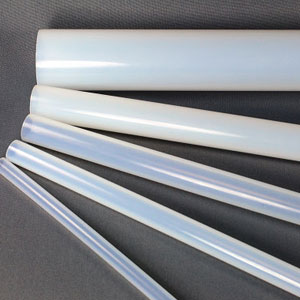

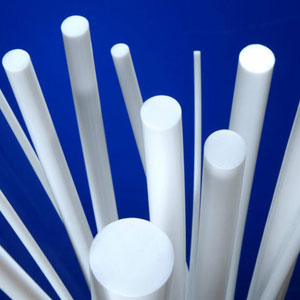

PFA / PTFE Thick Rod

  • Material: PFA 451HP, 951HP, PTFE, M-PTFE
  • Diameter : 50 ~ 150mm
  • Others are upon request
flow line PFA / PTFE Lined Pipes & Fittings
flow line PFA / PTFE Lined Pipes & Fittings

HP PFA / PVDF Tube & Pipe

  • Material : PFA, PFA 451HP, 951HP, FEP, PVDF
  • Standard Size : 1/4” ~8”
  • Thickness : Std. or By Customer
  • Length : STD. or By Customer
flow line PFA / PTFE Lined Pipes & Fittings
flow line PFA / PTFE Lined Pipes & Fittings

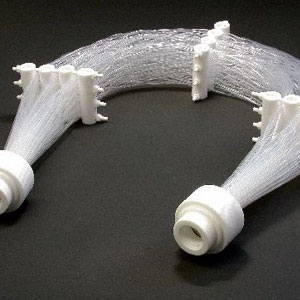

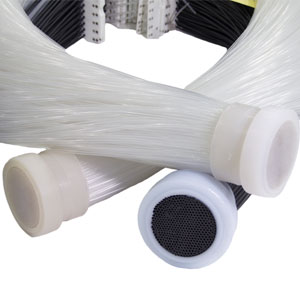

Fluoropolymer Heat Exchanger

  • High Performance PFA Emmersion Coil Heat Exchanger
  • Operation Pressure : ATM ~ 10 Kg / Cm2
  • Operation Temperature : 20 Deg C ~ 180 Deg C
  • Heat Exchanger Area : 0.1 M2 ~ 100 M2
  • Depends On Customer’s Request
  • Type : Shell & Tube, Customer Required
  • Tube Size : (451hp, 951hp)
  • 4MMOD × 3MMID PFA Tube
  • Shell Size : 8”~14” (Shell & Tube)
  • Heat Exchange Area : 1m2 ~ 65m2 (By Customer Design)
  • Connector : Spiral Tooth or Flange
flow line PFA / PTFE Lined Pipes & Fittings
flow line PFA / PTFE Lined Pipes & Fittings
